Sometimes we build some small item that,
by itself, doesn't quite earn a spot in the Custom Gun Gallery.
So occasionally
I have a photo of an individual aspect of a complete rework that I'd like to "showcase"
by itself.

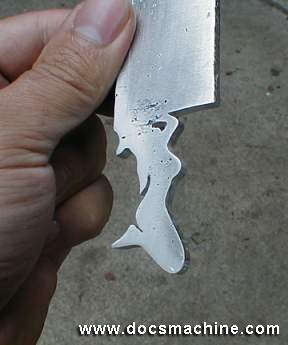

I'll also have the occasional picture of something that didn't quite
work out for some reason,
but would have been cool if it had... Have a look around.
(New stuff: 10-17-03!)

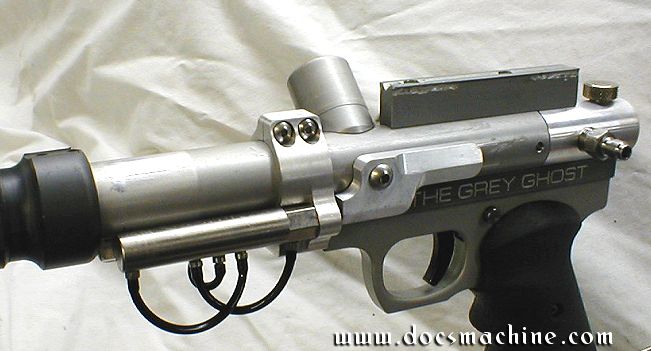

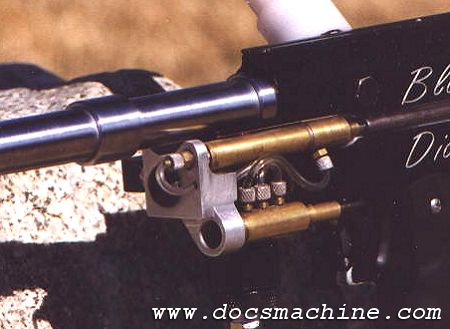

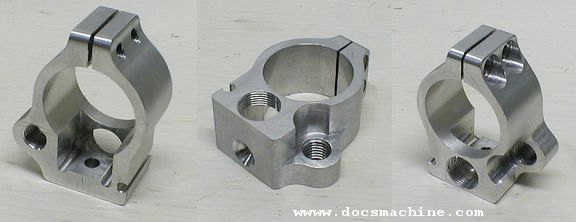

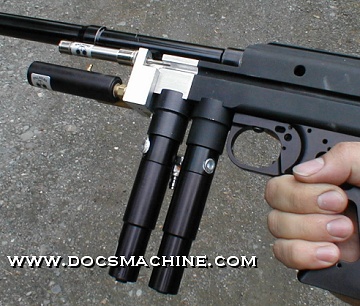

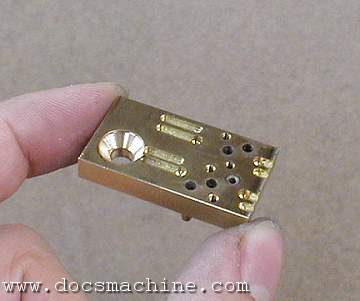

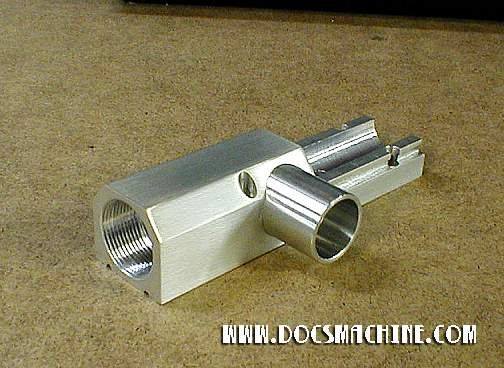

This rather complex piece holds the pneumatics on a pneumatic-assist Grey Ghost!

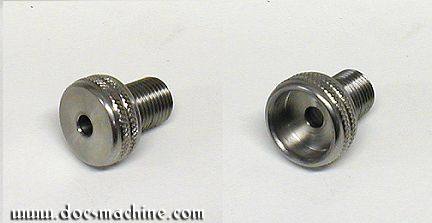

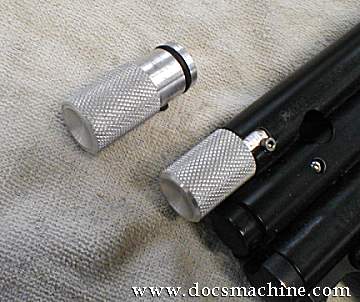

Take a little weight off a Jackhammer LPR knob.

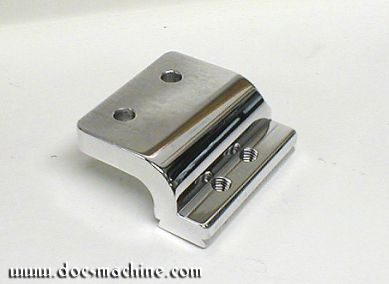

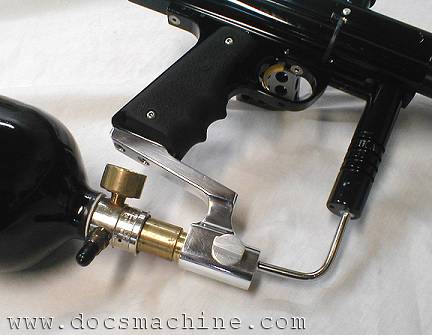

This Drop-Left moves a small Dynaflow tank 1" to the side for wrist clearance.

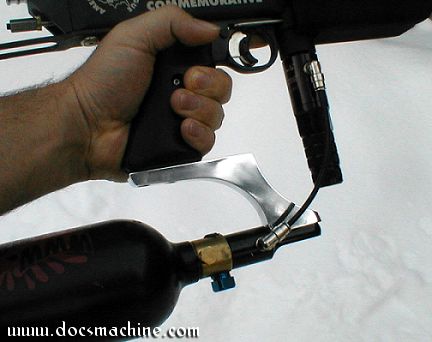

Speaking of drops, here's a big ugly one! (Customer wanted it that way, for a big 114 tank.)

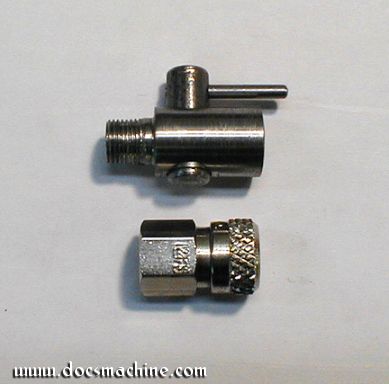

I had to make this tiny quarter-turn valve for a specific application.

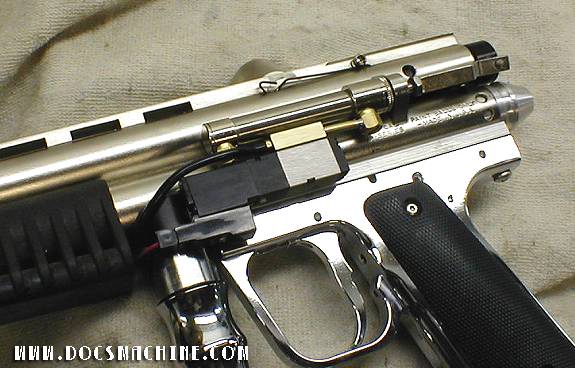

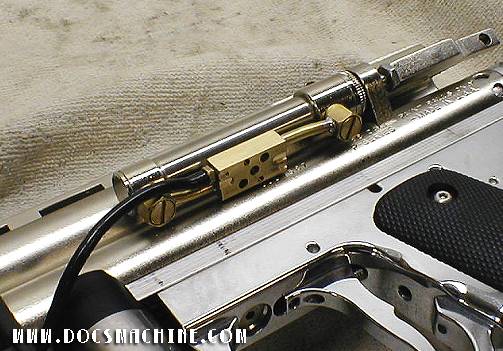

I'm putting a RaceGun electronic grip frame on my Stroker. So I whipped up this rather trick little Solenoid Mount that I'm fairly proud of. It's clean, compact and self contained.

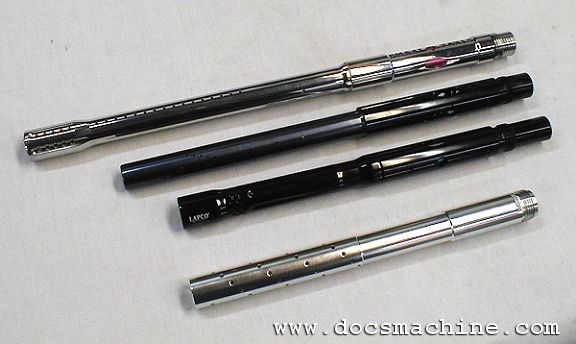

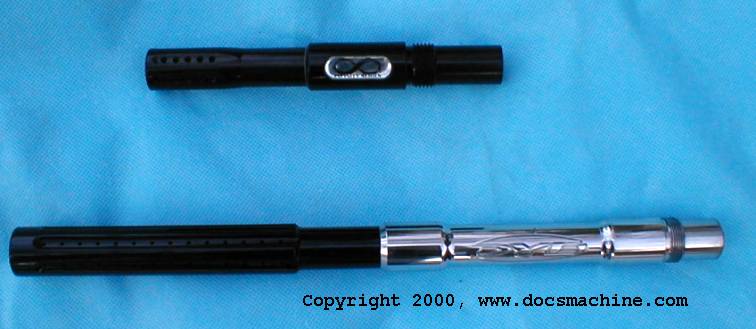

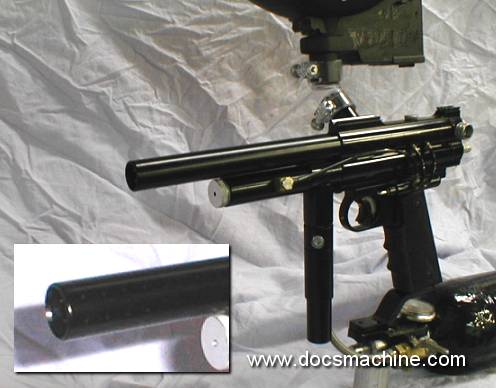

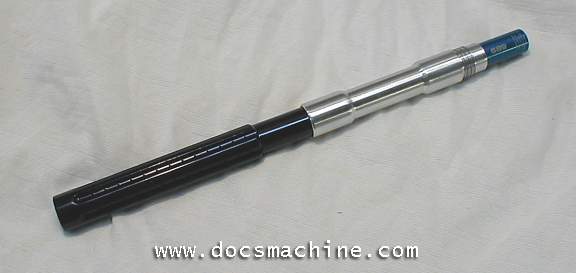

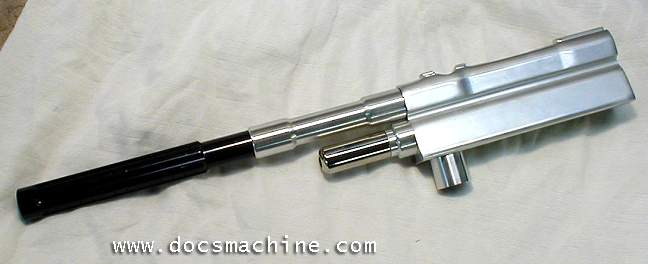

An in-progress shot of my Impulse, including this integrated front-cap/LPR assembly and a custom Jacko-tipped Freak-inserted Barrel.

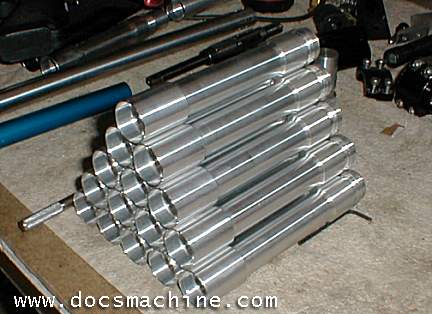

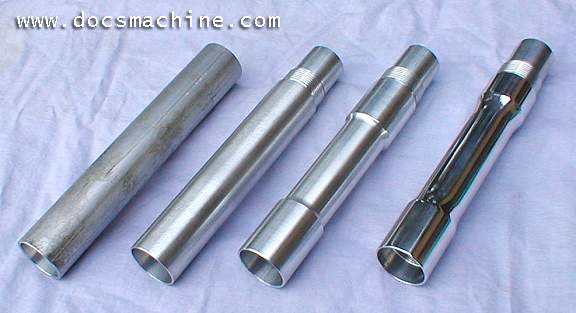

Speaking of Freaks- Here's a series of Custom Backs, and a pile of VM backs made for a customer.

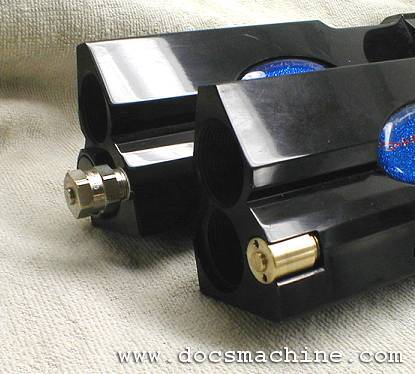

Here's a trick I did a year or two ago: I Recessed a Shocker overpressure poppet into the back of the gun body.

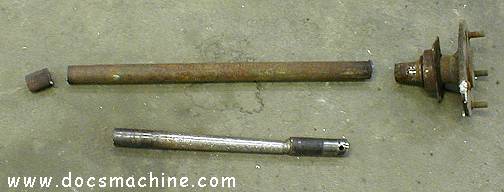

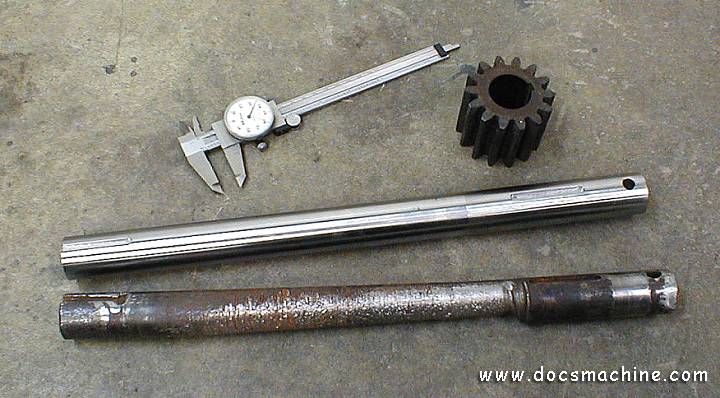

Recently fixed an old tire machine: Sawed up an old Axle and machined this new 1.250" x 18" keyed Shaft out of it.

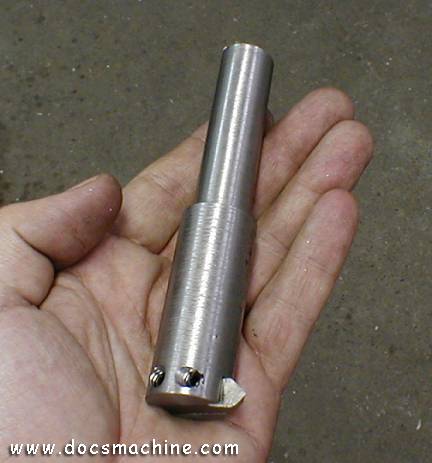

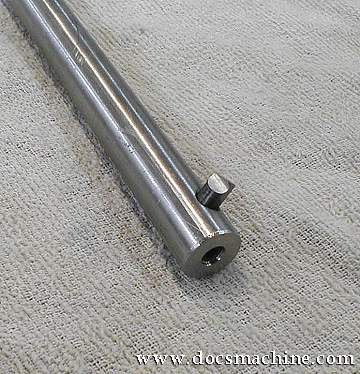

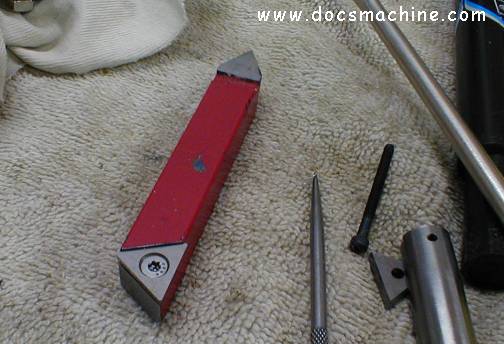

In the course of the repair, I had to make a couple of tools: A quick groove on the back of an old cemented carbide lathe tool and now it holds Indexible Carbide inserts. Then an old rusty 1" bridge bolt turned down and grooved to hold a bit of 5/16" tool steel makes this nice little Boring Bar.

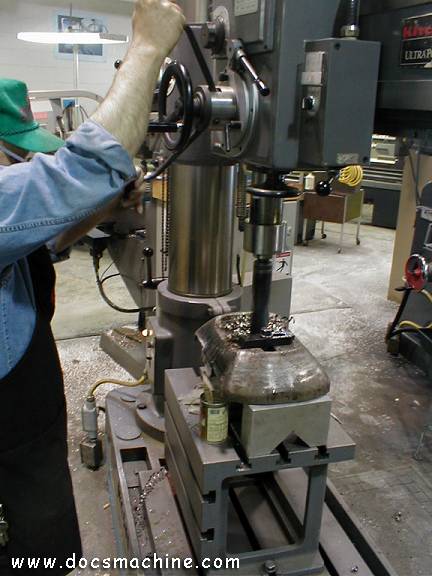

Got to use a great big Honkin' Drill Press too! (That's a 2-1/2" bit, by the way.)

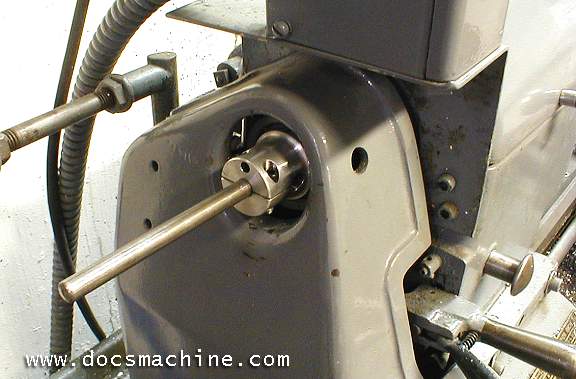

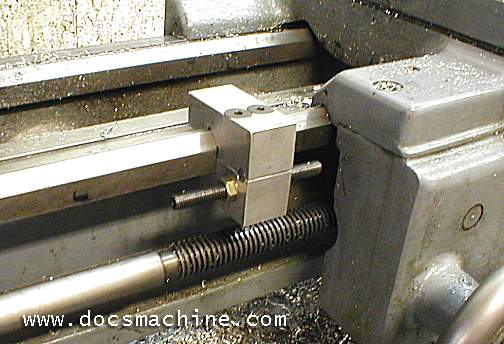

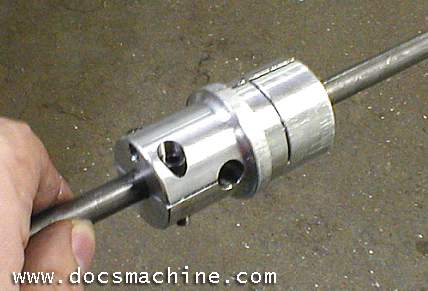

Any good machinist makes his own tools: Here's an adjustable Carrige Stop I made, plus an internal Spindle Depth Stop- here's how it Fits.

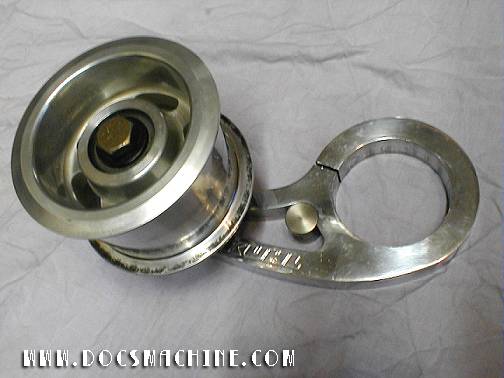

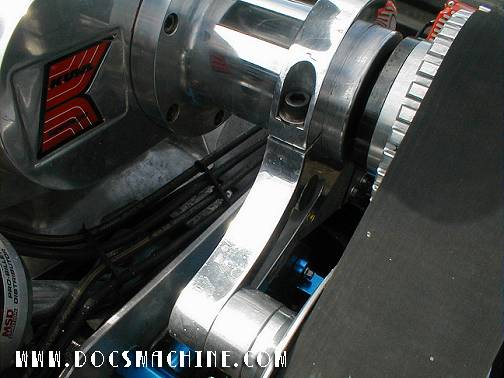

The bolt kept stripping in this KUHL Supercharger pulley mount, so I added a steel pivoting nut. Here it is installed on the 'charger.
Never liked those wack mounts for the Angel AIR, so I made this Apocalypse rail adapter.

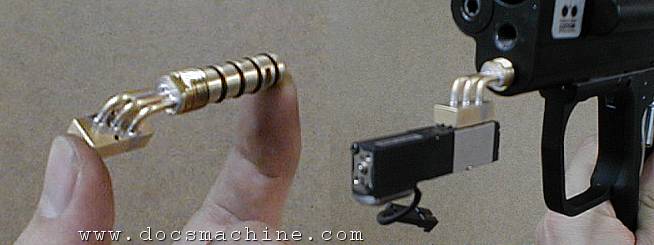

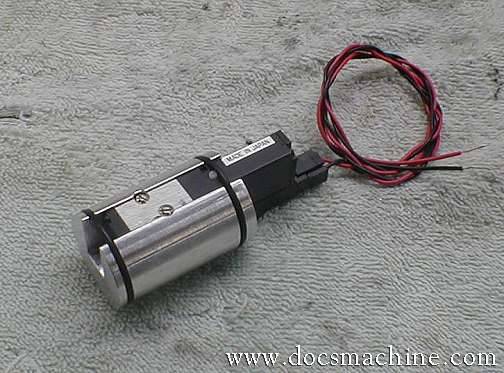

Stock LED Angel solenoids too expensive? Wanna run CO2? I made this adapter to run a Parker Solenoid in place of the bulky stock SMC.

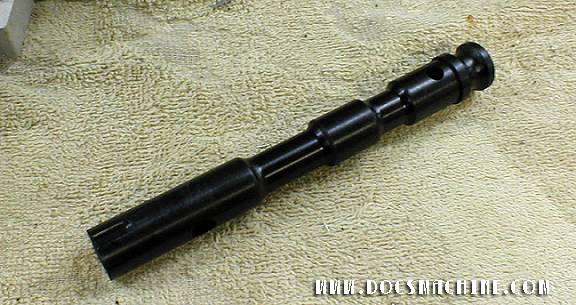

Just fiddlin' around recently, I carved up this Delrin 'Cocker bolt.

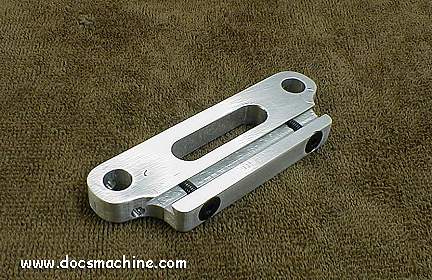

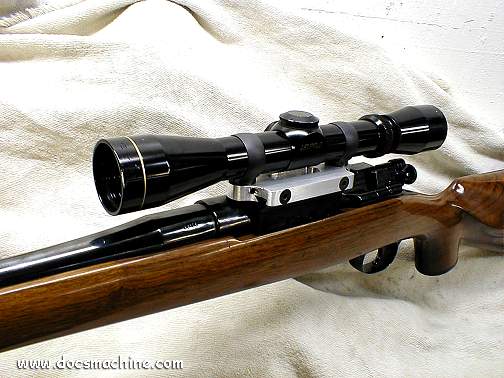

Friend of mine had this old Griffin & Howe quick-detachable scope mount. Problem is it only held the old 7/8" diameter scopes. I made this aluminum Mount to adapt some Conetrol rings and a modern 1" body telescope.
